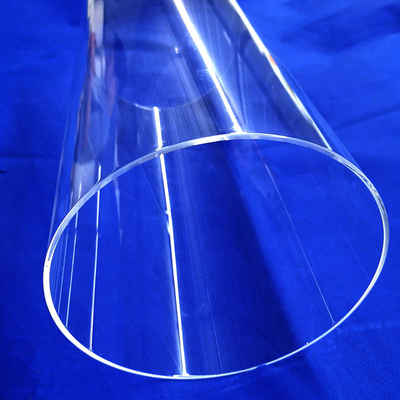

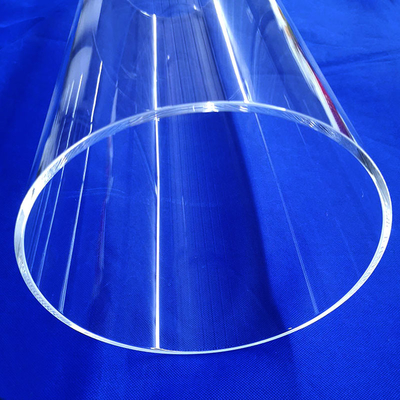

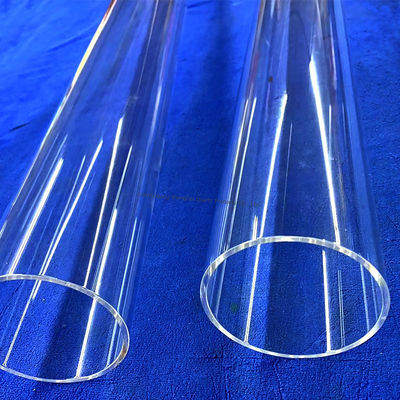

Resistance High Temperature All Size Quartz Glass Capillary Tube Fused Silica Transparent Quartz Glass Tube

Negotiable
MOQ
Negotiable
Price
Resistance High Temperature All Size Quartz Glass Capillary Tube Fused Silica Transparent Quartz Glass Tube
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Quartz Glass Tube
Application: Sources , Semiconductor
Material: SIO2>99.99%
Feature: Good Electrical Insulation
Light Transmittance: >92%
Working Temparature: 1100℃
Hardness: Mose 6.5
Resistance Value: 1000 Times Than Ordinary Glass

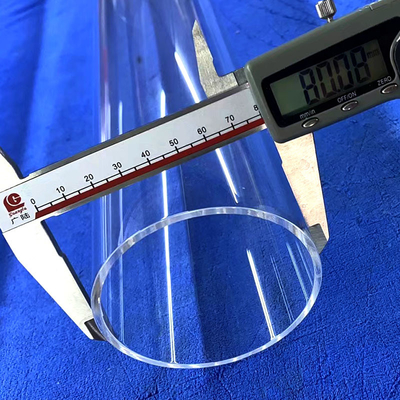

Outside Diameter: 1mm-1000mm
Highlight:

Transparent Quartz Glass Tube

,

Fused Silica Quartz Glass Tube

,

High Temperature Quartz Glass Tube

Basic Infomation
Place of Origin: China
Brand Name: shengfan
Certification: ISO9001
Model Number: T-1
Payment & Shipping Terms
Packaging Details: plastic bubble/ polystyrene foam sheet/ carton/ wooden pallet
Delivery Time: 15 work days
Payment Terms: L/C, T/T
Supply Ability: 100,000 pieces per month
Product Description
Shengfan Quartz plate characteristic
SIO2 99.9%
Density 2.2(g/cm³)
Degree of hardness moh’ scale 6.6
Melting point 1732℃
Working temperature 1100℃
Max temperature can reach in a short time 1450℃
Visible light transmittance Above 93%
UV spectral region transmittance 80%
Annealing point 1180℃
Softening point 1630℃
Strain point 1100℃



We are a manufacturer of Transparent Quartz Tube Furnace:
Size&design: Accept customize according to different diameter, thickness,length or sending your drawing.



Advantage of Quartz Tube Furnace:
1)High purity:SiO₂> 99.99%.
2)Operating Temperature: 1200℃; Soften Temperature: 1730℃.
3)Good thermal stability.
4)Acid and alkali resistance.
5)High transmittance.
6)Excellent electrical insulator.



Resistance High Temperature All Size Quartz Glass Capillary Tube Fused Silica Transparent Quartz Glass Tube 0

Resistance High Temperature All Size Quartz Glass Capillary Tube Fused Silica Transparent Quartz Glass Tube 1

Chemical properties:Quartz glass is an acidic material, except for hydrofluoric acid and hot phosphoric acid, it is inert to any
other acid and is a very good acid-resistant material, with better chemical stability than opaque quartz glass, non-hygroscopic and non-weathering.
Electrical Properties:Quartz glass has high dielectric strength and low conductivity, even at high temperature, high pressure and high frequency, still maintain high dielectric strength and resistance, almost no dielectric loss in the applied frequency band, so quartz glass is excellent high temperature dielectric insulation material.
Optical Performance:Quartz glass has its unique optical properties, it can transmit both the far-ultraviolet spectrum, which is a good choice for all UV-transmitting materials, and can transmit visible light and near-infrared spectrum, high temperature resistance, small coefficient of thermal expansion, good chemical thermal stability, bubbles, streaks, uniformity, birefringence and comparable to general optical glass.
Thermal Properties:The coefficient of thermal expansion of quartz glass is small, only one-twelfth to one-twentieth of the ordinary glass times, the standard stipulates that the specimen will be burned to 1200 degrees Celsius and then cast sharply into cold water, repeatedly more than three times is not allowed to blow up.
Mechanical properties:Quartz glass mechanical properties than coin glass and ceramics are better, but the brittleness is poor. The theoretical calculated strength of quartz glass is very high, about 24 * 1.3 MPA, but the actual measured strength is tens of times lower than this value.
Airtight performance:The structure of quartz is very relaxed, even at high temperatures also allows the ions of certain gases to diffuse through the network, including the diffusion of sodium ions for the faster. This property of quartz glass is particularly important for users.

Resistance High Temperature All Size Quartz Glass Capillary Tube Fused Silica Transparent Quartz Glass Tube 2
Resistance High Temperature All Size Quartz Glass Capillary Tube Fused Silica Transparent Quartz Glass Tube 3

Resistance High Temperature All Size Quartz Glass Capillary Tube Fused Silica Transparent Quartz Glass Tube 4

Resistance High Temperature All Size Quartz Glass Capillary Tube Fused Silica Transparent Quartz Glass Tube 5

Resistance High Temperature All Size Quartz Glass Capillary Tube Fused Silica Transparent Quartz Glass Tube 6

Production process:

Resistance High Temperature All Size Quartz Glass Capillary Tube Fused Silica Transparent Quartz Glass Tube 7

Resistance High Temperature All Size Quartz Glass Capillary Tube Fused Silica Transparent Quartz Glass Tube 8

Resistance High Temperature All Size Quartz Glass Capillary Tube Fused Silica Transparent Quartz Glass Tube 9Resistance High Temperature All Size Quartz Glass Capillary Tube Fused Silica Transparent Quartz Glass Tube 10

Product use:

Resistance High Temperature All Size Quartz Glass Capillary Tube Fused Silica Transparent Quartz Glass Tube 11

Applications:

Resistance High Temperature All Size Quartz Glass Capillary Tube Fused Silica Transparent Quartz Glass Tube 12

Packing & Delivery:

Resistance High Temperature All Size Quartz Glass Capillary Tube Fused Silica Transparent Quartz Glass Tube 13Resistance High Temperature All Size Quartz Glass Capillary Tube Fused Silica Transparent Quartz Glass Tube 14

Company Profile:

Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation.
Covering an area of 1000 square meters,we now have over 30 employees,an annual sales figure exceeding USD 5.2 million.
With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.

Resistance High Temperature All Size Quartz Glass Capillary Tube Fused Silica Transparent Quartz Glass Tube 15

Our Services & Strength:
The company adhere to the integrity of business, experience, reasonable price, quality assurance, to provide excellent after-sales service, we sincerely welcome customers to come to negotiate.



FAQ:

Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the delivery time?
A: Within 15 days after receiving deposit.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How to proceed an order in your factory?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. How do you ship the goods and how long does it take to arrive?
A: DHL, UPS, FedEx or TNT are optional for small order. It usually takes 3-5 days to arrive.
Airline and sea shipping are also available.
