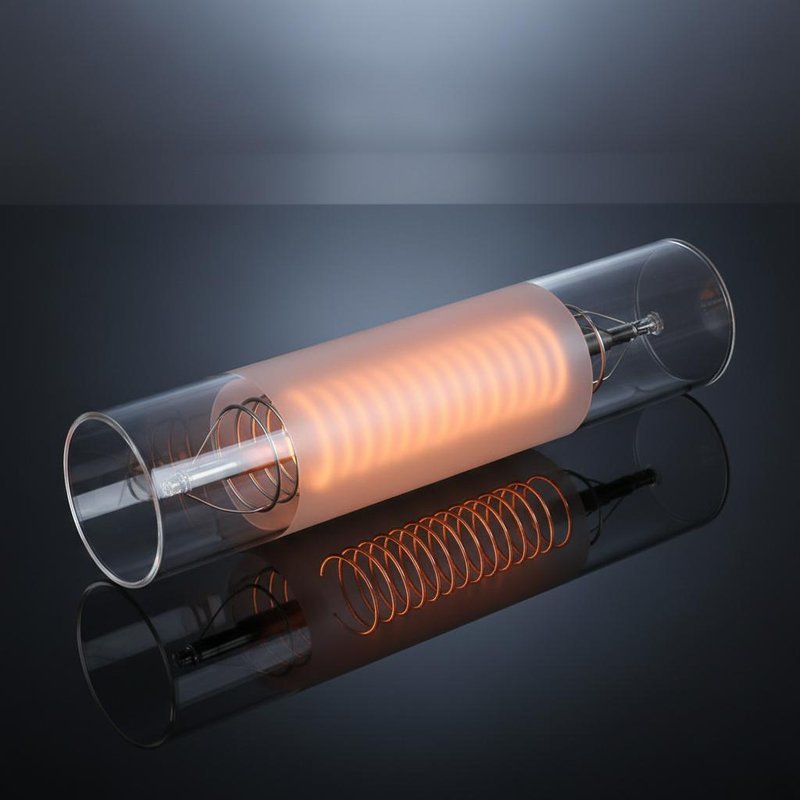

Custom High Temperature Resistant Large Diameter Quartz Glass Tube with Good Electrical Insulation
Product Details
| Name: | Quartz Glass Tube | Application: | Sources , Semiconductor |
|---|---|---|---|
| Material: | SIO2>99.99% | Feature: | Good Electrical Insulation |
| Light Transmittance: | >92% | Working Temparature: | 1100℃ |
| Hardness: | Mose 6.5 | Resistance Value: | 1000 Times Than Ordinary Glass |
| Working Temperature: | 1100 Celsius | Classification: | Quartz Tube |
| Size: | OD 1-100MM | Wall Thickness: | 0.5 MM-40 MM |
| Color: | Transparent | ||
| Highlight |
quartz glass tube Custom,quartz glass tube Large diameter,High temperature resistant quartz glass tube |
||
Product Description
- High Durability
- High Heat Resistance
- High Corrosion Resistance
- Low Thermal Expansion Coefficient
| SIO2 | 99.9% |
| Density | 2.2 (g/cm³) |
| Degree of hardness moh' scale | 6.6 |
| Melting point | 1732℃ |
| Working temperature | 1100℃ |
| Max temperature can reach in a short time | 1450℃ |
| Visible light transmittance | Above 93% |
| UV spectral region transmittance | 80% |
| Annealing point | 1180℃ |
| Softening point | 1630℃ |
| Strain point | 1100℃ |
Product Highlights
Custom High Temperature Resistant Heating Quartz Glass Tube Large Diameter Good Electrical Insulation Quartz Glass Tube For Sources, Semiconductor Main Application: Light sources, semiconductor, optical, communications, military, building materials, chemical, mechanical, electrical, environmental ...
