Corrosion Resistant High Transmittance Quartz Glass Plate with 1100℃ Working Temperature
Product Details
| Type: | Clear Quartz Plate | Application: | Semiconductor, Optical |
|---|---|---|---|
| Thickness: | 0.5-100mm | Shape: | Square |
| Processing Service: | Punching, Cutting | Product Name: | Quartz Glass Plate |
| Material: | SIO2 | SIO2: | SIO2>99.99% |
| Density: | 2.2g/cm3 | Color: | Clear Transparent |
| Working Temperature: | 1100℃ | Melting Point: | 1732℃ |
| Port: | Shanghai And Qindao Port | ||
| Highlight |
Corrosion Resistant Quartz Glass Cylinder Crucible,Factory Quartz Glass Cylinder Crucible,Laboratory Quartz Glass Cylinder Crucible |
||
Product Description
| Property | Value |
|---|---|
| Brand | shengfanquartz |
| SiO2 Content | 99.99% |
| Density | 2.2 (g/cm³) |
| Hardness (Mohs' Scale) | 6.6 |
| Melting Point | 1732℃ |
| Working Temperature | 1100℃ |
| Annealing Point | 1180℃ |
| Softening Point | 1630℃ |
| Density | 2.2x10³ kg/m³ | Hardness | 5.5 - 6.5 Mohs' Scale |
| Tensile Strength | 4.8x10⁷ Pa (7000 psi) | Compressive Strength | > 1.1 x 10⁹ Pa (160,000 psi) |
| Bulk Modulus | 3.7x10¹⁰ Pa | Rigidity Modulus | 3.1x10¹⁰ Pa |
| Parameter | Specification |
|---|---|
| Color | Transparent |
| Shape | Circular / Round |
| Standard | JGS1, JGS2, JGS3 |
| Material | 99.99% SiO2 |
| Diameter | 1-800mm |
| Thickness | 0.2-100mm |
| Application | Optics quartz windows |
| Light Transmittance | >92% |
| Resistance Value | 1000 times than ordinary glass |
- SiO2 content exceeding 99.99% high purity quartz
- Operating Temperature: 1250℃, Softening Temperature: 1730℃
- Excellent visual and chemical performance
- No surface coating or contaminants
- Health care and environmental protection compliant
- Custom dimensions available
- CE, RoHS, SGS certified
Product Highlights

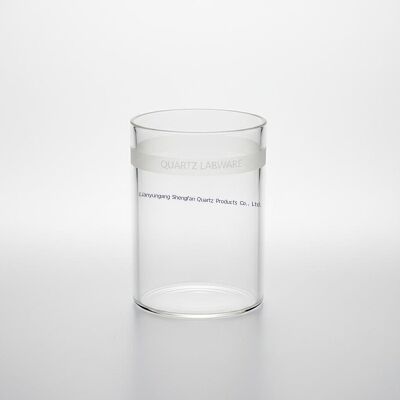

Factory Custom Laboratory Quartz Glass Cylinder Crucible High Transmittance Quartz Glass Plate with excellent corrosion resistance, designed for UV light transmission protection and transparent applications. Product Specifications Property Value Brand shengfanquartz SiO2 Content 99.99% Density 2.2 ...
XRD Sample Tank Test Sheet Carrier Chip Slotted Quartz Glass Sheet Sample Tank Can Be Customized
Thin Quartz Glass Plate Dimensional Stable 1-1000mm Processing Range Product description: Fused clear silica quartz glass plate is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window. Specification Quick Details Place of Origin Jiangsu,China Brand SF Material Glass,High quality Optical Glass Usage Optical Structure Double Convex Shape
Photocatalytic Reactor Chemistry Glassware Kit
Product description: 1.SiO2> 99.99% ,tubing fused quartz 2.Operating Temperature: 1250℃ 3.Excellent visual and chemical performance . 4.Without surface coating andinfectant . 5.Health care and environmental protection. 6.Any specification can be made. 7.Quartz glass is acidic materials, except hydro fluoric acid and 300 degrees Celsius thermal phosphoric acid, on any other acids were shown to be inert, is the best anti acid materials. The advantages of Customized High Quality
No Air Bubble Flat Glass Plates High Purity Quartz Glass Window Transparent Circular Sight Glasses
No Air Bubble Flat Glass Plates Excellent Visual Performance Circular Shape Quartz Glass Window Product description: Fused clear silica quartz glass plate is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window. Application of quartz plate: Military industrial complex, machinery, metallurgy, printing and dyeing, optical instruments, high
Purified Square Glass Plates High Pressure Resistant Anti Alkali Strong Hardness
Product description: Fused clear silica quartz glass plate is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window. Application of quartz plate: Military industrial complex, machinery, metallurgy, printing and dyeing, optical instruments, high temperature sight glasses, fire hole industries such as high temperature and other industries,
