High Transmittance 1100℃ Working Temperature 99.99% SiO2 Purity Quartz Glass Tube for Semiconductor and Optical Applications
Product Details
| Type: | Clear Quartz Plate | Application: | Semiconductor, Optical |
|---|---|---|---|
| Thickness: | 1-100mm | Shape: | Square |
| Processing Service: | Punching, Cutting | Product Name: | Quartz Glass Plate |
| Material: | SIO2 | SIO2: | SIO2>99.99% |
| Density: | 2.2g/cm3 | Color: | Clear Transparent |
| Working Temperature: | 1100℃ | Melting Point: | 1732℃ |
| Port: | Shanghai And Qindao Port | ||
| Highlight |
Sand Core Quartz Glass Tube,Transparent Quartz Glass Tube,Polished Quartz Glass Tube |
||
Product Description
| Property | Value |
|---|---|
| Brand | Shengfan Quartz |
| SiO2 Content | 99.99% |
| Density | 2.2 g/cm³ |
| Hardness (Mohs Scale) | 6.6 |
| Melting Point | 1732℃ |
| Working Temperature | 1100℃ |
| Annealing Point | 1180℃ |
| Softening Point | 1630℃ |
| Density | 2.2×10³ kg/m³ | Hardness | 5.5-6.5 Mohs' Scale |
| Tensile Strength | 4.8×10⁷ Pa (7000 psi) | Compressive Strength | >1.1×10⁹ Pa (160,000 psi) |
| Bulk Modulus | 3.7×10¹⁰ Pa | Rigidity Modulus | 3.1×10¹⁰ Pa |
| Parameter | Specification |
|---|---|
| Color | Transparent |
| Shape | Circular / Round |
| Standard | JGS1, JGS2, JGS3 |
| Material | 99.99% SiO2 |
| Diameter | 1-800mm |
| Thickness | 0.2-100mm |
| Application | Optics quartz windows |
| Light Transmittance | >92% |
| Resistance Value | 1000 times ordinary glass |
- SiO2 content exceeding 99.99% for high purity quartz tubes
- Operating temperature: 1250℃ with softening temperature of 1730℃
- Excellent visual and chemical performance characteristics
- No surface coating or contaminants
- Health care and environmental protection compliant
- Custom dimensions available
- CE, RoHS, and SGS certified
Product Highlights

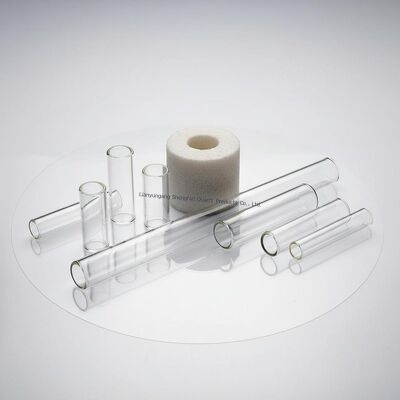

Transparent Polished Quartz Glass Tube Products Sand Core Pipe High transmittance quartz glass tube with excellent UV light transmission protection and transparency. Technical Specifications Property Value Brand Shengfan Quartz SiO2 Content 99.99% Density 2.2 g/cm³ Hardness (Mohs Scale) 6.6 Melting ...
