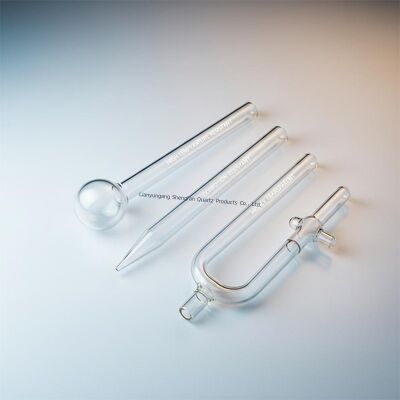

High Temperature Resistant Corrosion Resistant Highly Transparent Quartz Glass Tube for Semiconductor and Optical Applications
Product Details
| Type: | Clear Quartz Tube | Application: | Semiconductor, Optical |
|---|---|---|---|
| Thickness: | 1-100mm | Shape: | Square |
| Processing Service: | Punching, Cutting | Product Name: | Quartz BET Tube |
| Material: | SIO2 | SIO2: | SIO2>99.99% |
| Density: | 2.2g/cm3 | Color: | Clear Transparent |
| Working Temperature: | 1100℃ | Melting Point: | 1732℃ |
| Port: | Shanghai And Qindao Port | ||
| Highlight |
Quartz Glass BET adsorption tubes,High Temperature quartz glass tube,Transparent quartz glass tube |
||
Product Description
| Property | Value |
|---|---|
| Brand | Shengfan Quartz |
| SiO2 Content | 99.99% |
| Density | 2.2 g/cm³ |
| Hardness (Mohs' Scale) | 6.6 |
| Melting Point | 1732℃ |
| Working Temperature | 1100℃ |
| Annealing Point | 1180℃ |
| Softening Point | 1630℃ |
| Density | 2.2*10³ kg/m³ | Hardness | 5.5-6.5 Mohs' Scale |
|---|---|---|---|
| Tensile Strength | 4.8*10⁷ Pa (7000 psi) | Compressive Strength | >1.1*10⁹ Pa (160,000 psi) |
| Bulk Modulus | 3.7*10¹⁰ Pa | Rigidity Modulus | 3.1*10¹⁰ Pa |
| Parameter | Specification |
|---|---|
| Color | Transparent |
| Shape | Circular / Round |
| Standard | JGS1 |
| Material | 99.99% SiO2 |
| Diameter | 1-800mm |
| Thickness | 0.25-10mm |
| Application | Optics quartz windows |
| Light Transmittance | >92% |
| Resistance Value | 1000 times higher than ordinary glass |
- SiO2 content exceeding 99.99% for high purity quartz tubes
- Operating temperature: 1250℃ with softening temperature of 1730℃
- Excellent visual and chemical performance characteristics
- No surface coating or contaminants
- Health care and environmental protection compliant
- Custom dimensions available upon request
- CE, RoHS, and SGS certified
A: Yes, we welcome sample orders to test and check quality.
A: Within 15 days after receiving deposit.
A: Low MOQ, 1pc for sample checking is available.
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
A: DHL, UPS, FedEx or TNT are optional for small orders. It usually takes 3-5 days to arrive. Airline and sea shipping are also available.
