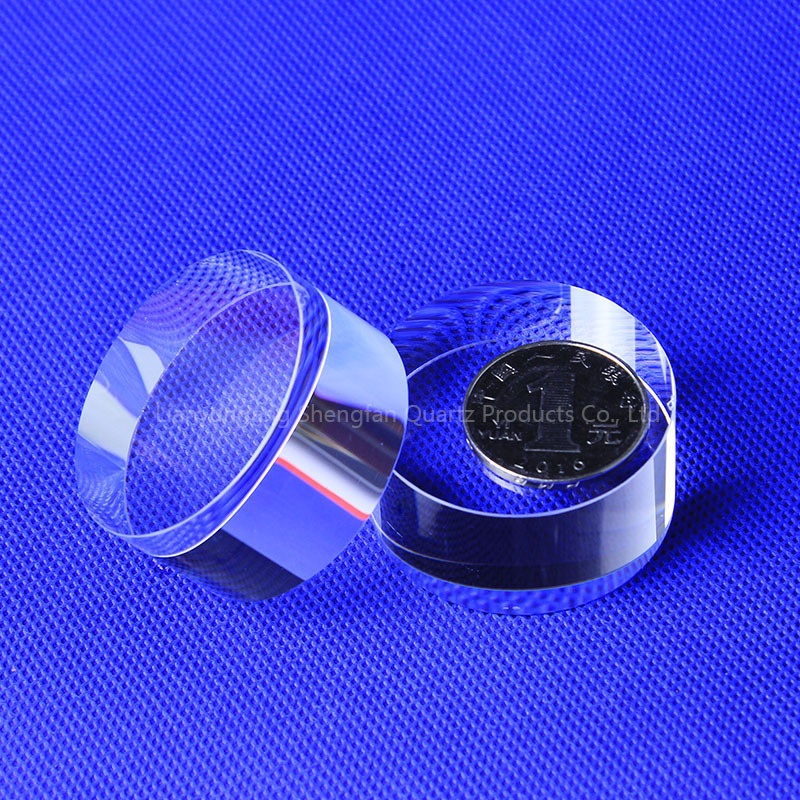

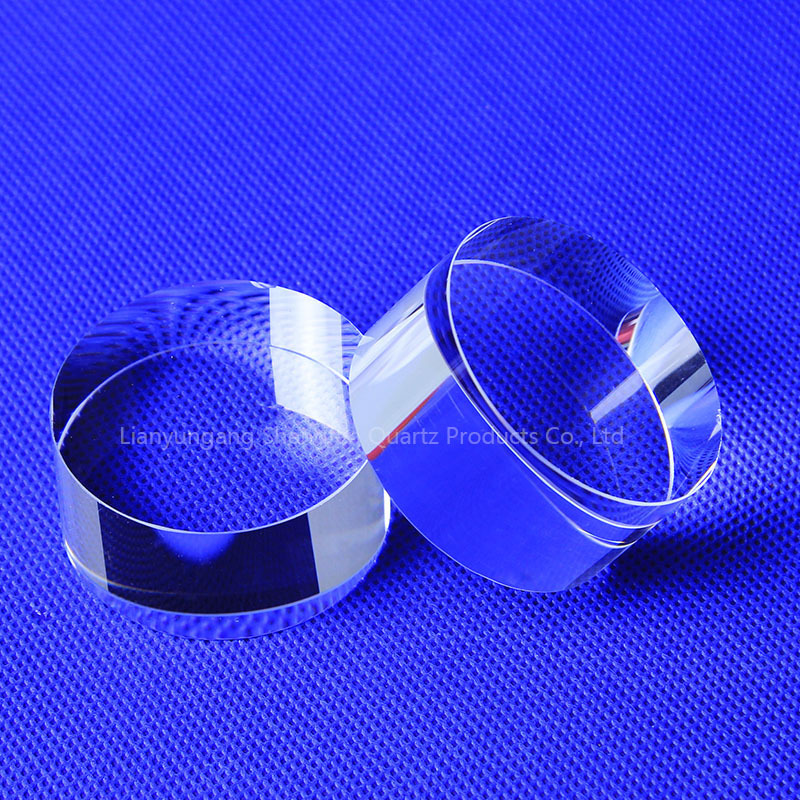

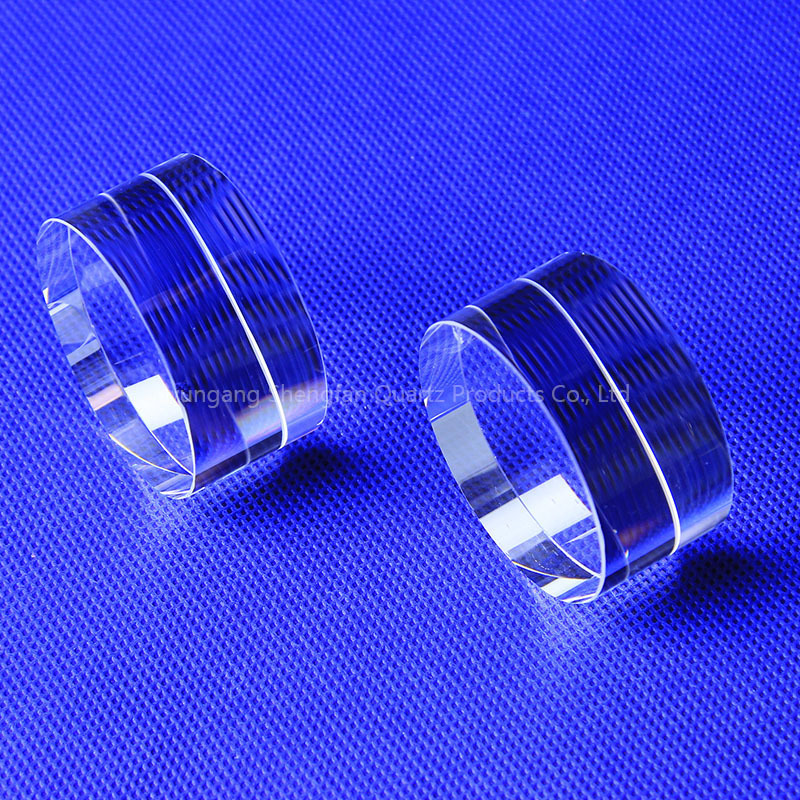

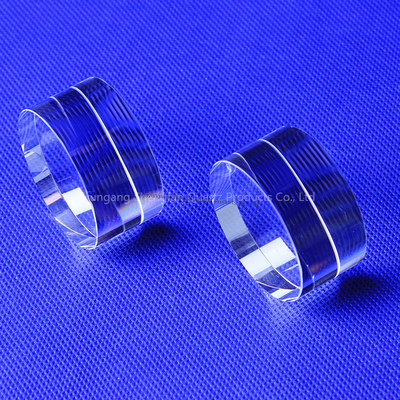

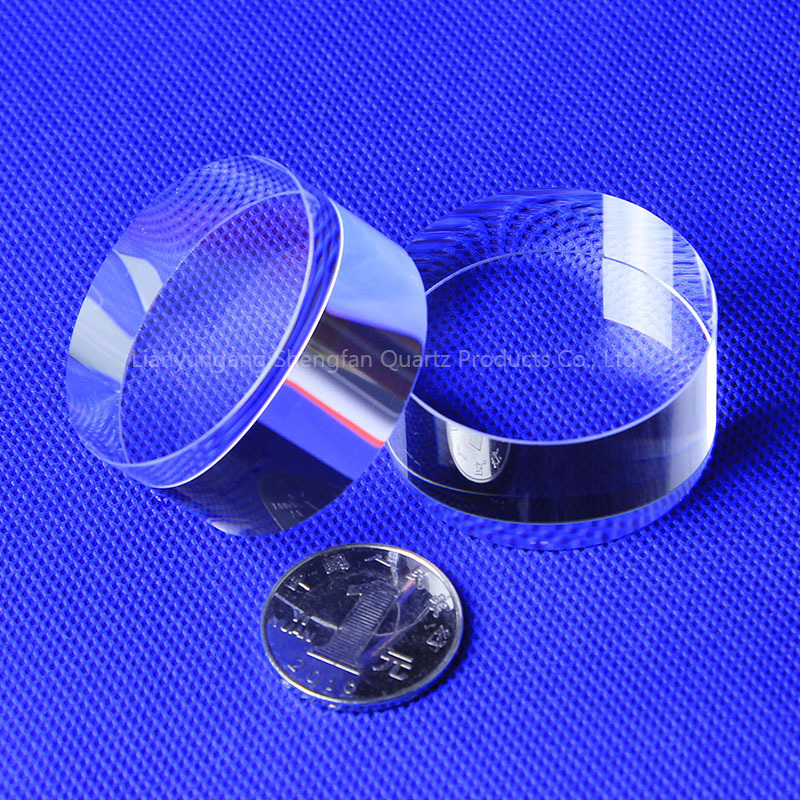

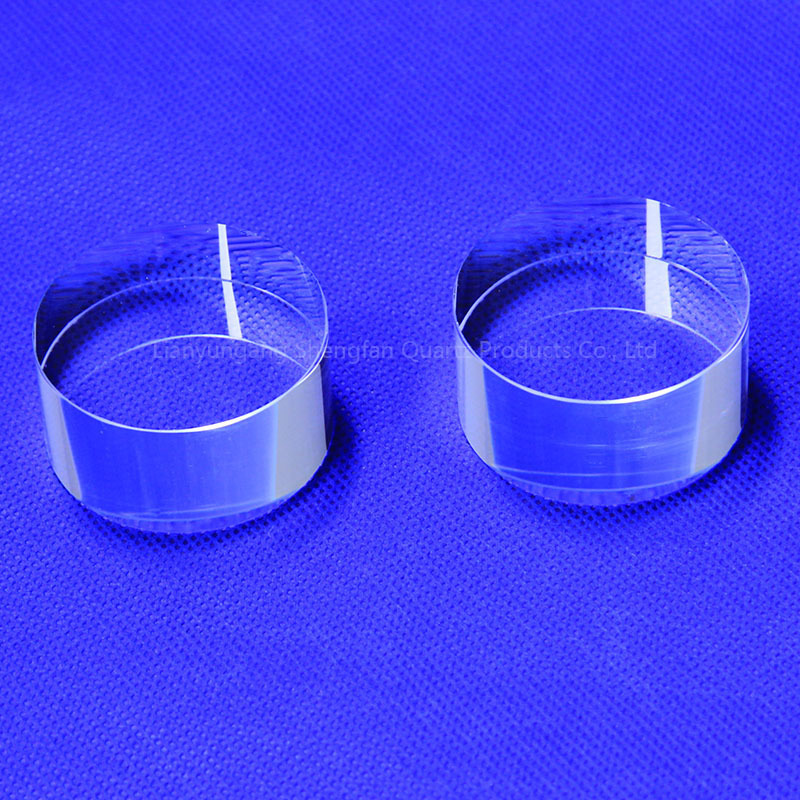

Fused Silica Quartz Glass Disc Premium Optical Lens Quartz Plate
Product Details
| Type: | Clear Quartz Plate | Application: | Semiconductor, Optical |
|---|---|---|---|
| Thickness: | 0.5-100mm | Shape: | Square |
| Processing Service: | Punching, Cutting | Product Name: | Quartz Glass Plate |
| Material: | SIO2 | SIO2: | SIO2>99.99% |
| Density: | 2.2g/cm3 | Color: | Clear Transparent |
| Working Temperature: | 1100℃ | Melting Point: | 1732℃ |
| Port: | Shanghai And Qindao Port | ||
| Highlight |
Fused Silica Quartz Plate,Lens Quartz Glass Disc |
||
Product Description
|
Shengfan Quartz plate characteristic
|
|
|
|
*Brand
|
shengfanquartz
|
|
|
*SIO2
|
99.99%
|
|
|
*Density
|
2.2(g/cm³)
|
|
|
*Degree of hardness moh’ scale
|
6.6
|
|
|
*Melting point
|
1732℃
|
|
|
* Working temperature
|
1100℃
|
|
|
*Annealing point
|
1180℃
|
|
|
*Softening point
|
1630℃
|
|
| Density | 2.2x103 kg/m3 | Hardness | 5.5 - 6.5 Mohs' Scale 570 KHN 100 |
| Design Tensile Strength | 4.8x107 Pa (N/m2) (7000 psi) | Design Compressive Strength | Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730 |
| Bulk Modulus | 3.7x1010 Pa (5.3x106 psi) | Rigidity Modulus | 3.1x1010 Pa (4.5x106 psi) |
| Softening Point | 1730°C | Annealing Point | 1215°C |
|
Setting Information
|
|
|
|
Color
|
Transparent
|
|
|
Shape
|
Circular / Round
|
|
|
Standard
|
JGS1,JGS2,JGS3
|
|
|
Material
|
99.99% sio2
|
|
|
Diameter
|
1-800mm
|
|
|
Thickness
|
0.2-100mm
|
|
|
Application
|
Optics quartz windows
|
|
|
Density
|
6.6
|
|
|
Light Transmittance
|
>92%
|
|
|
Hardness
|
Mose 6.5
|
|
|
Resistance Value
|
1000 times than ordinary glass
|
|
Our Services & StrengthThe company adhere to the integrity of business, experience, reasonable price, quality assurance, to provide excellent after-sales service, we sincerely welcome customers to come to negotiate
