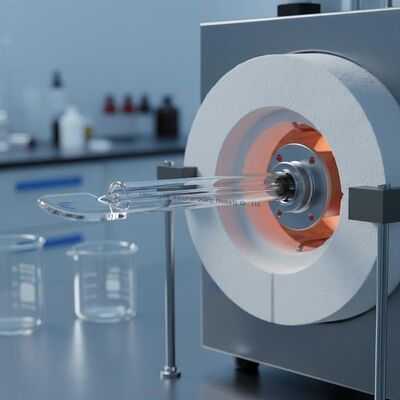

High Temperature Resistant Corrosion Resistant Transparent Quartz Glass Tube for Tubular Furnaces with High Transmittance
Product Details
| Type: | Clear Quartz Tube | Application: | Semiconductor, Optical |
|---|---|---|---|
| Thickness: | 1-100mm | Shape: | Round |
| Processing Service: | Punching, Cutting | Product Name: | Quartz Glass Tube |
| Material: | SIO2 | SIO2: | SIO2>99.99% |
| Density: | 2.2g/cm3 | Color: | Clear Transparent |
| Working Temperature: | 1100℃ | Melting Point: | 1732℃ |
| Port: | Shanghai And Qindao Port | ||
| Highlight |
high temperature quartz stirring tube,corrosion resistant quartz glass tube,transparent quartz tube for furnaces |
||
Product Description
| Property | Value |
|---|---|
| Brand | Shengfan Quartz |
| SiO2 Content | 99.99% |
| Density | 2.2 g/cm³ |
| Hardness (Mohs' Scale) | 6.6 |
| Melting Point | 1732℃ |
| Working Temperature | 1100℃ |
| Annealing Point | 1180℃ |
| Softening Point | 1630℃ |
| Density | 2.2*10³ kg/m³ | Hardness | 5.5 - 6.5 Mohs' Scale |
| Tensile Strength | 4.8*10⁷ Pa | Compressive Strength | >1.1*10⁹ Pa |
| Bulk Modulus | 3.7*10¹⁰ Pa | Rigidity Modulus | 3.1*10¹⁰ Pa |
| Softening Point | 1730℃ | Annealing Point | 1215℃ |
| Parameter | Specification |
|---|---|
| Color | Transparent |
| Shape | Circular / Round |
| Standard | JGS1 |
| Material | 99.99% SiO2 |
| Diameter | 1-800mm |
| Thickness | 0.25-10mm |
| Application | Optics quartz windows |
| Light Transmittance | >92% |
| Resistance Value | 1000 times ordinary glass |
- SiO2 content exceeding 99.99% for high purity quartz tubes
- Operating temperature: 1250℃ with softening temperature of 1730℃
- Excellent visual and chemical performance characteristics
- No surface coating or contaminants
- Health care and environmental protection compliant
- Custom dimensions available upon request
- CE, RoHS, and SGS certified
