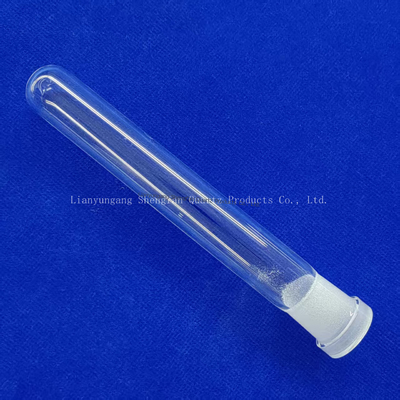

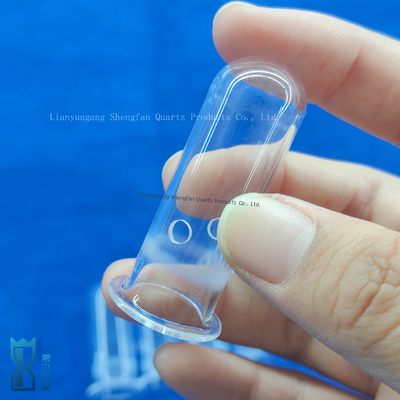

High Density 2.2g/cm3 Quartz Glass Tube with 1180℃ Annealing Point and 1100℃ Strain Point for Industrial Applications
Product Details
| Type: | Clear Quartz Tube | Application: | Semiconductor, Optical |
|---|---|---|---|
| Thickness: | 0.5-100mm | Shape: | Circular |
| Processing Service: | Bending, Welding, Punching, Polishing | Product Name: | Quartz Pipe |
| Material: | SIO2>99.99% | Density: | 2.2g/cm3 |
| Working Temparature: | 1150℃ | Hardness: | Morse 6.5 |
| Melt Point: | 1750-1850℃ | Acid Tolerance: | 30 Times Than Ceramics,150 Times Than Stainless Steel |
| Size: | Customized | Annealing Point: | 1180℃ |
| Strain Point: | 1100℃ | Port: | Shanghai And Qindao Port |
| Highlight |
High Density Quartz Glass Tube,1180℃ Annealing Point Quartz Pipe,1100℃ Strain Point Fused Quartz Tube |
||
Product Description
| Property | Value |
|---|---|
| Brand | shengfanquartz |
| SIO2 | 99.99% |
| Density | 2.2(g/cm³) |
| Degree of hardness moh' scale | 6.6 |
| Melting point | 1732℃ |
| Working temperature | 1100℃ |
| Annealing point | 1180℃ |
| Softening point | 1630℃ |
| Parameter | Details |
|---|---|
| Color | Transparent |
| Shape | Circular / Semicircular |
| Standard | JGS1, JGS2, JGS3 |
| Material | 99.99% SiO2 |
| Diameter | 1-800mm |
| Thickness | 0.2-100mm |
| Application | Optics quartz windows |
| Light Transmittance | >92% |
| Hardness | Mose 6.5 |
| Resistance Value | 1000 times than ordinary glass |
- Provide detailed drawings with dimensions (unit: mm)
- We manufacture products according to your specifications
- Semiconductor manufacturing
- Electric light source devices
- Semiconductor communication devices
- Laser technology
- Optical instruments
- Laboratory equipment
- Electrical and medical devices
- Chemical, electronics, and metallurgy industries
- High corrosion resistance
- Exceptional temperature tolerance
- Aesthetically pleasing design
- Compact and durable structure
- Excellent light transmission
- Superior electrical insulation
- Share your requirements or application needs
- We provide quotation based on your specifications
- Customer confirms samples and places deposit
- We arrange production
