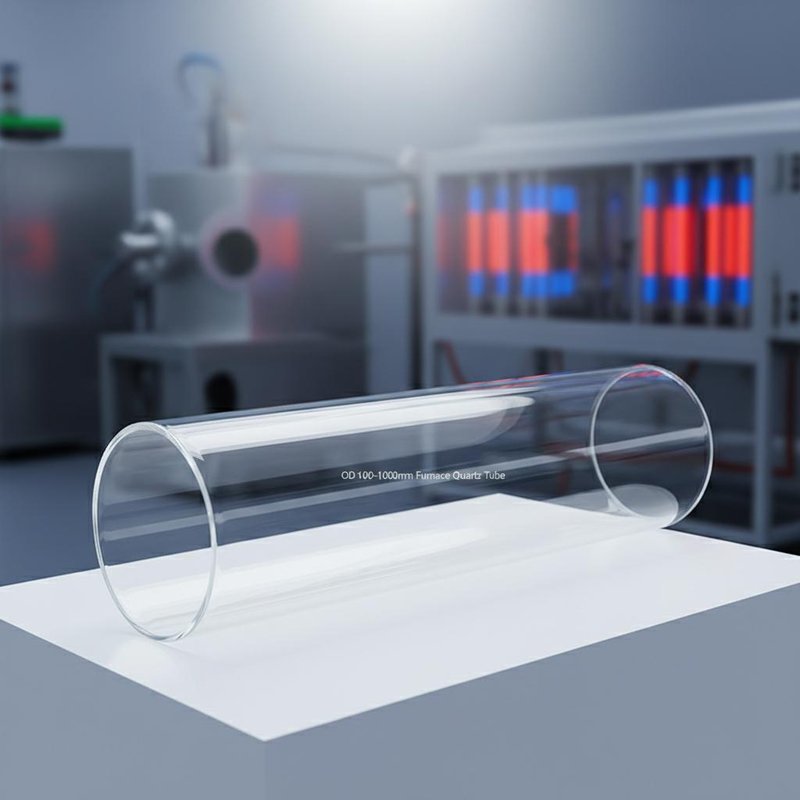

Custom OD 100-1000mm High Purity SiO2>99.99% Quartz Glass Tube for Furnace with 1250℃ Working Temperature
Product Details
| Color: | Clear/Transparent | Material: | SIO2>99.99% |
|---|---|---|---|
| Material Type: | JGS1/JGS2/JGS3 | Hardness: | Morse 6.6 |
| Density: | 2.2g/cm3 | Working Temparature: | 1250℃ |
| Melt Point: | 1730℃ | Resistance To Corrosion: | 30 Times Than Ceramics,150 Times Than Stainless Steel |
| Application: | Photovoltaic, Semiconductor,Lab,Industrial, Chemical, Medical,Aerospace, | ||
| Highlight |
custom furnace quartz tube,large diameter quartz glass tube,OD 100-1000mm quartz tube |
||
Product Description
- Furnace Tube: Conventional size tubes within OD200 are typically in stock and mass-produced directly from the furnace
- Resizing Tube: Tubes above OD200 are rarely in stock and require resizing to achieve precise specifications
- No large size tube inventory required for specific size orders
- Superior tolerance and flatness compared to standard furnace tubes
- Maximum diameter reaches 1 meter with lengths up to 5 meters
- Tolerance: ±0.5mm, Flatness: ±0.5mm, Straightness: ±0.5mm
- High purity: SiO₂ > 99.99%
- Operating Temperature: 1250°C; Softening Temperature: 1730°C
- Excellent thermal stability with low coefficient of thermal expansion
- High corrosion resistance against acids and alkalis
- Superior electrical insulation properties
- Health care and environmental protection compliance
- No air bubbles or air lines
Product Highlights
Custom OD 100-1000mm Furnace Quartz Tube With Large Diameter Shengfan Quartz Glass Tube We are a manufacturer of Transparent Quartz Tube Furnace. Size & Design Customization Accept custom specifications according to different diameter, thickness, length, or by providing your technical drawings. ...
XRD Sample Tank Test Sheet Carrier Chip Slotted Quartz Glass Sheet Sample Tank Can Be Customized
Thin Quartz Glass Plate Dimensional Stable 1-1000mm Processing Range Product description: Fused clear silica quartz glass plate is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window. Specification Quick Details Place of Origin Jiangsu,China Brand SF Material Glass,High quality Optical Glass Usage Optical Structure Double Convex Shape
Photocatalytic Reactor Chemistry Glassware Kit
Product description: 1.SiO2> 99.99% ,tubing fused quartz 2.Operating Temperature: 1250℃ 3.Excellent visual and chemical performance . 4.Without surface coating andinfectant . 5.Health care and environmental protection. 6.Any specification can be made. 7.Quartz glass is acidic materials, except hydro fluoric acid and 300 degrees Celsius thermal phosphoric acid, on any other acids were shown to be inert, is the best anti acid materials. The advantages of Customized High Quality
No Air Bubble Flat Glass Plates High Purity Quartz Glass Window Transparent Circular Sight Glasses
No Air Bubble Flat Glass Plates Excellent Visual Performance Circular Shape Quartz Glass Window Product description: Fused clear silica quartz glass plate is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window. Application of quartz plate: Military industrial complex, machinery, metallurgy, printing and dyeing, optical instruments, high
Purified Square Glass Plates High Pressure Resistant Anti Alkali Strong Hardness
Product description: Fused clear silica quartz glass plate is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window. Application of quartz plate: Military industrial complex, machinery, metallurgy, printing and dyeing, optical instruments, high temperature sight glasses, fire hole industries such as high temperature and other industries,
