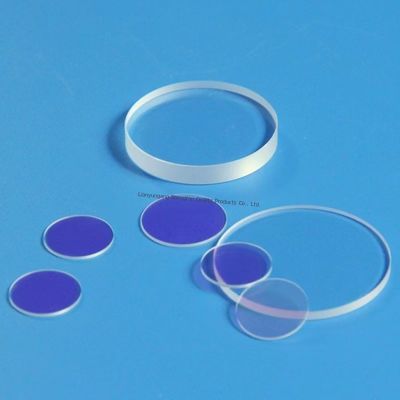

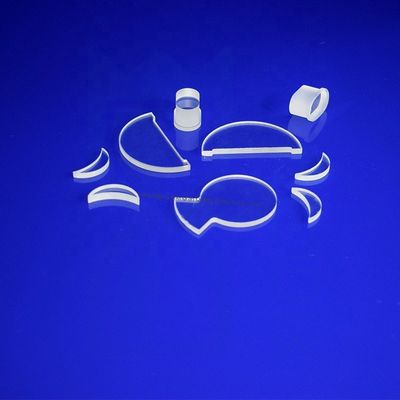

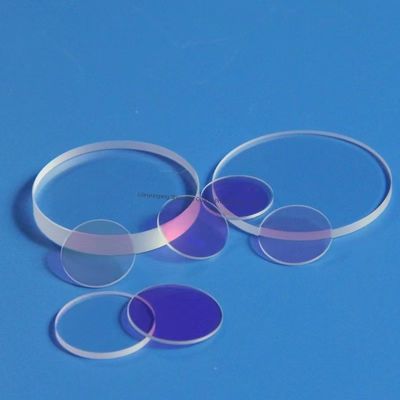

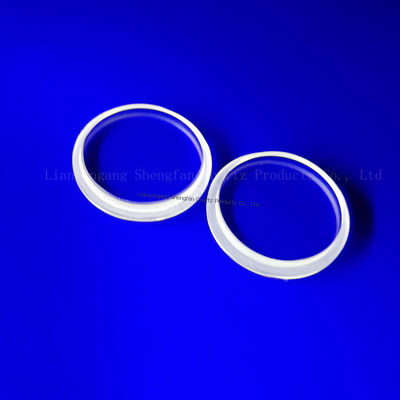

High Temperature Resistance (1150℃) High Purity (SIO2>99.99%) Customizable Size (0.5-100mm) Quartz Glass Plate for Semiconductor and Optical Applications
Product Details
| Type: | Clear Quartz Plate | Application: | Semiconductor, Optical |
|---|---|---|---|
| Thickness: | 0.5-100mm | Shape: | Square/round |
| Processing Service: | Bending, Welding, Punching, Polishing | Product Name: | Quartz Plate |
| Material: | SIO2>99.99% | Density: | 2.2g/cm3 |
| Working Temparature: | 1150℃ | Hardness: | Morse 6.5 |
| Melt Point: | 1750-1850℃ | Acid Tolerance: | 30 Times Than Ceramics,150 Times Than Stainless Steel |
| Size: | Customized | Annealing Point: | 1180℃ |
| Strain Point: | 1100℃ | Port: | Shanghai And Qindao Port |
| Highlight |
High Temperature Resistance Quartz Glass Plate,High Purity Fused Silica Plate,Customizable Size Optical Quartz Plate |
||
Product Description
| Property | Specification |
|---|---|
| Brand | Shengfan Quartz |
| SiO₂ Content | 99.99% |
| Density | 2.2 g/cm³ |
| Hardness (Mohs Scale) | 6.6 |
| Melting Point | 1732℃ |
| Working Temperature | 1100℃ |
| Annealing Point | 1180℃ |
| Softening Point | 1630℃ |
| Parameter | Details |
|---|---|
| Color | Transparent |
| Shape | Square/Round |
| Standard | JGS1, JGS2, JGS3 |
| Material | 99.99% SiO₂ |
| Diameter | 1-800mm |
| Thickness | 0.2-100mm |
| Application | Optics Quartz Windows |
| Light Transmittance | >92% |
| Hardness | Mohs 6.5 |
| Resistance Value | 1000 times higher than ordinary glass |
- Provide detailed dimension drawings (unit: mm)
- We manufacture products according to your drawings
- High corrosion resistance
- Excellent high temperature tolerance
- Attractive appearance with compact structure
- Easy to operate and handle
- Strong light transmission capabilities
- Superior electrical insulation properties
- Provide your requirements or application details
- We provide quotation based on your requirements or our suggestions
- Customer confirms samples and places deposit for formal order
- We arrange production
