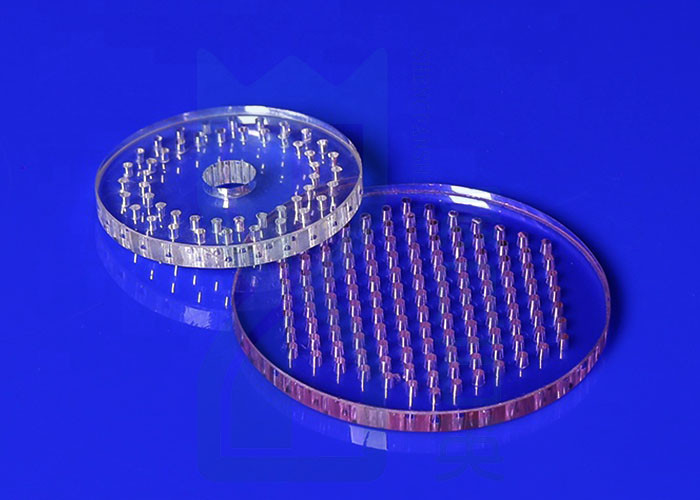

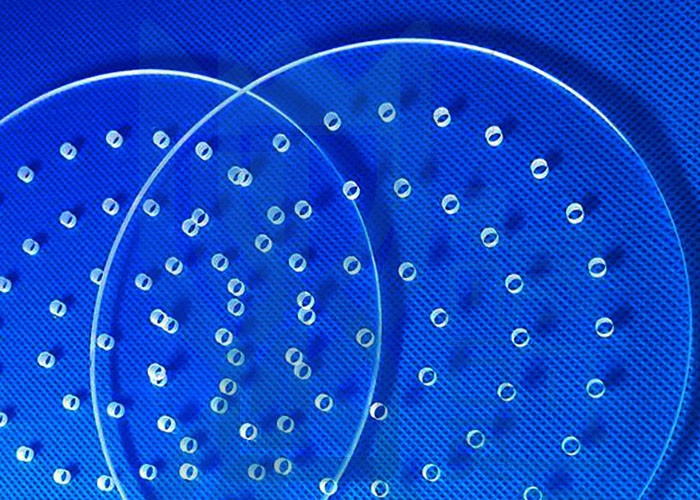

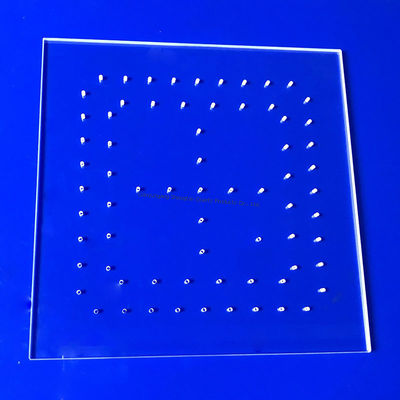

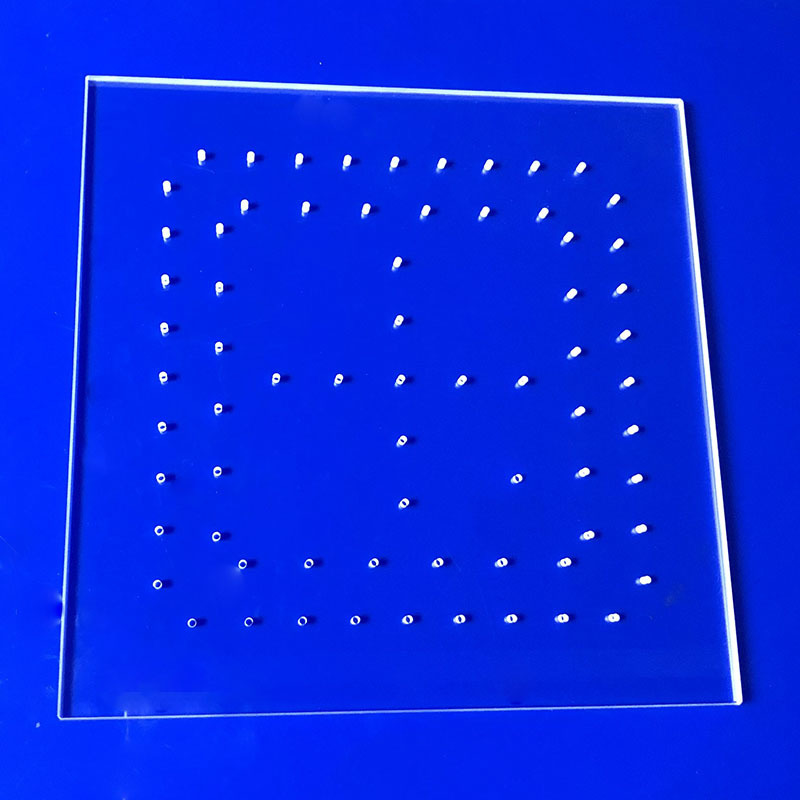

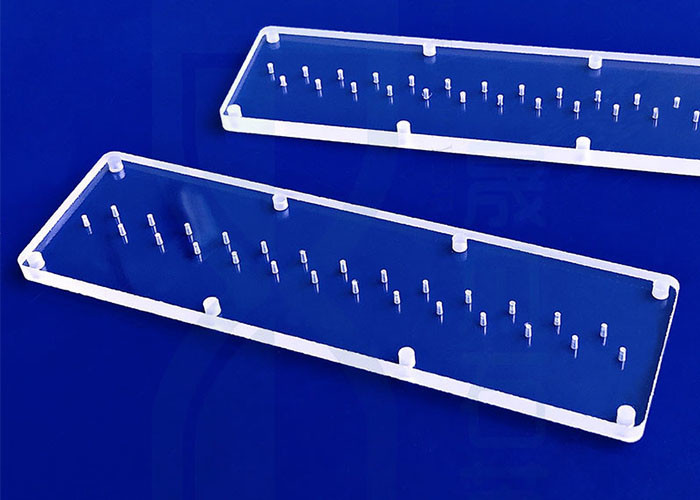

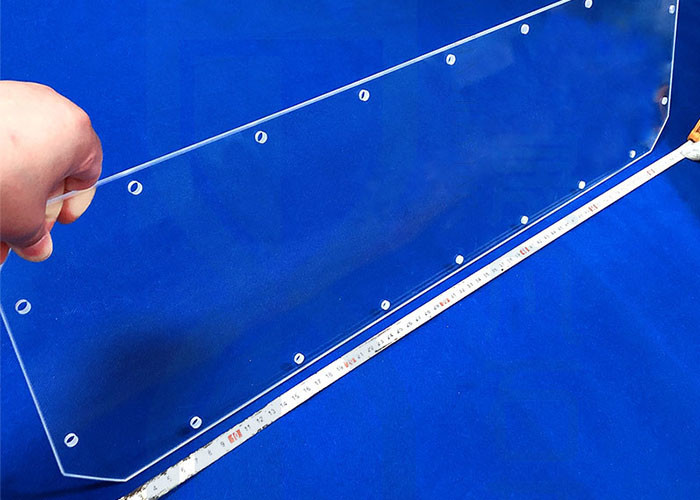

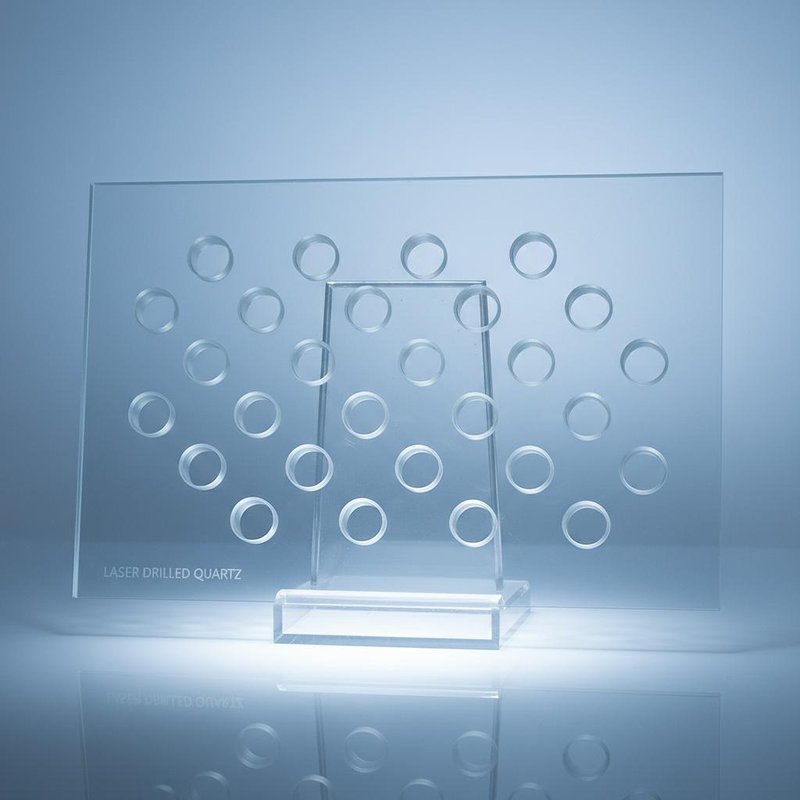

Processing Laser Drilling Transparent Quartz Glass Plate With Hole
Product Details
| Product Name: | Quartz Glass Plate | Material: | SIO2>99.99% |
|---|---|---|---|
| Density: | 2.2g/cm3 | Light Transimittance: | 92% |
| Hardness: | Morse 6.5 | Working Temparature: | 1150℃ |
| Tolerance: | ±0.02mm | Sample: | Customized |
| Shape: | Circular Shape,Square,Arc,Rectangle Or Could Customize Based Drawing.,round | Thickness: | 0.5-100mm,1-100mm,customize,from 0.3mm To Your Requirement,1~20mm |
| Application: | Semiconductor,Optical,sight Glass,UV Plate,Industry | Type: | Clear Quartz Plate,Translucent Quartz Plate,slice,target,round Or Customized |
| Color: | Transparent,Clear,Frosted,opaque | Size: | Customer's Requirement,customize,base On Customer's Need |
| Purity: | 99.99%,more Than 99.99%,>99.8%; | Product Name: | Best Purity Quartz Glass Plate,Clear Small Size Fused Silica Quartz Plate With Holes,quartz Plate,transparent Uv Quartz Glass Plate,HM Clear Polished Fused Quartz Glass Plate |
| Package: | Wooden Cases,standard Export Package,foam And Carton | Diameter: | 10mm-600mm,Customized |
| Keywords: | Sight Glass,Clear Quartz Glass Windows,blocks Glass,large Quartz Glass Plate | Work Temperature: | 1100 Degrees Celsius,1100°C |
| Oem: | YES,Available | Coating: | No Coating,Custom Design,N/A |
| Working Temperature: | 1100℃,1200°C,1200 Degree | ||
| Highlight |
transparent quartz glass plate,laser drilling fused quartz,quartz plate with hole |
||
Product Description
- Military industrial complex
- Machinery and metallurgy
- Printing and dyeing equipment
- Optical instruments
- High temperature sight glasses
- Fire hole industries
- Electric light source equipment
- Laboratory instruments
- Chemical apparatus
| SiO₂ Content | 99.9% |
| Density | 2.2 g/cm³ |
| Hardness (Moh's Scale) | 6.6 |
| Melting Point | 1732℃ |
| Working Temperature | 1100℃ |
| Maximum Short-term Temperature | 1450℃ |
| Visible Light Transmittance | Above 93% |
| UV Spectral Region Transmittance | 80% |
| Annealing Point | 1180℃ |
| Softening Point | 1630℃ |
| Strain Point | 1100℃ |
| Type | JGS1 (ZS-1) | JGS2 (ZS-2) | JGS3 (HS) |
|---|---|---|---|
| Spectral Characteristics | 180-2500nm | 200-2500nm | 260-3500nm |
| Average Transmittance | 90% | 85% | 85% |
| Bubble Class | 0 | 2 | 2 |
| Birefringence | 1-2 | 1-2 | 1-2 |
| Grain Structure | 1 | 2 | 2 |
| Fringe | 1-2 | 2 | 2 |
| Uniformity | 1-2 | 2 | 2 |
| Fluorescence | 1 | 2 | 2 |
| Radiation Performance | Does not change color | Slight discoloration | Changes color |
- Raw Material → Single Line Cutting → Milling and Grinding Machine → Coarse Grinding → Fine Grinding → Polishing → CNC Machining
- Provide your requirements or application
- We quote according to your requirements or our suggestions
- Customer confirms samples and places deposit for formal order
- We arrange production
